Efficient, Versatile, Economical, Easy to Use

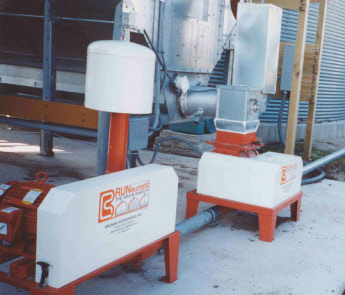

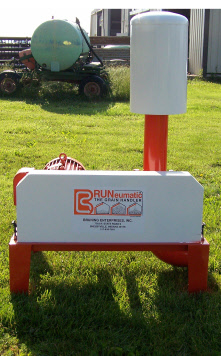

BRUNeumatic Air Systems includes: Pump, Rotary Airlock, Drives, and Motors mounted on frames, ready for installation, factory wired electrical control panel for wall mounting.
Specifications
Model Number
Size
Bu/Hr*
Pump HP
Elect. Phase
310S-
3"
400
10
Single
310T-
3"
400
10
Three
415S-
4"
700
15
Single
415T-
4"
700
15
Three
4275S-
4"
700
2-
Single
5210S-
5"
1100
2-
Single
520T-
5"
1100
20
Three
530TH-
5"
1200
30
Three
640T-
6"
1700
40
Three
650T-
6"
1800
50
Three
All models available with stock option of chrome airlock Approximate capacity for corn (15%). Volume will vary due to type of grain, moisture content, length of time and altitude of operation. Don't see what you need? Bruning Enterprises can engineer a system for you.
in Kansas City, Positive displacement blowers made in the USA, Electric motors made
in the USA, GE Electrical Controls, and the pride of American workmanship.
One look and you will see why we were the first and still the best grain handling
system on the market today, and in the future.
Pneumatic grain moving is fast and does less damage than traditional augers.
Pneumatic grain moving is cost effective by using less motors and electricity than
conventional and traditional grain moving systems.
Pneumatic grain moving is modular and can be expanded quickly.
Pneumatic grain moving makes sense for today’s farmers!
with industrial type air cleaner,
mounted on a skid.
mounted on a skid.

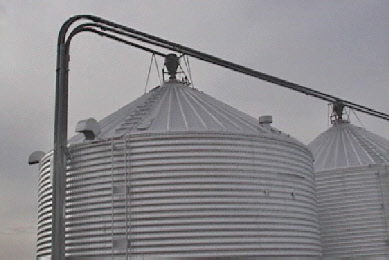

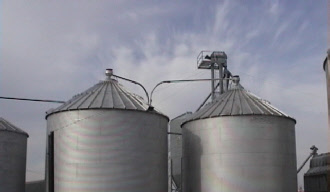

to multiple bins with the use of
one power source.
system to new or existing
grain handling systems.

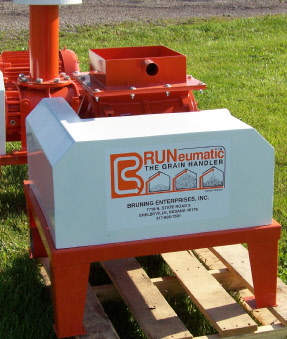

quality, heavy duty, cast iron air locks,
and positive displacement cast iron blower
units with industrial air cleaners
• 14 gauge galvanized tubing
• 11 gauge large radius elbows
• Flex hose
• Camlocks
• Tube support brackets
• Wall brackets
• Cyclones
• Velocity Control Regulator Valve
• Muffler
• Female caps and male plugs
• Compression couplers
